TFC-792-UN-A | 763-gallon Aviation Fuel Trailer

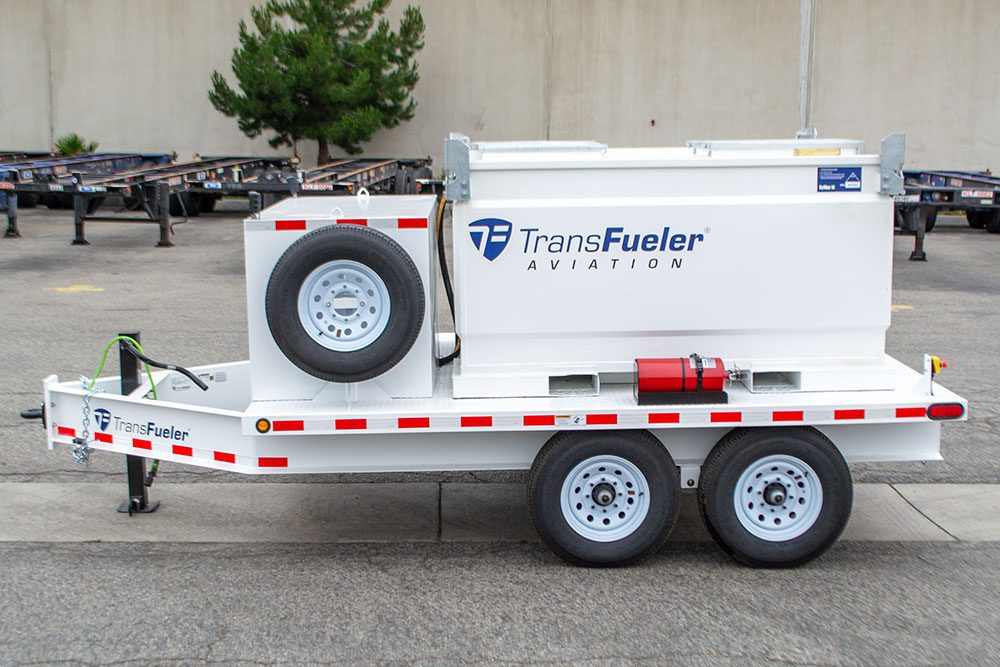

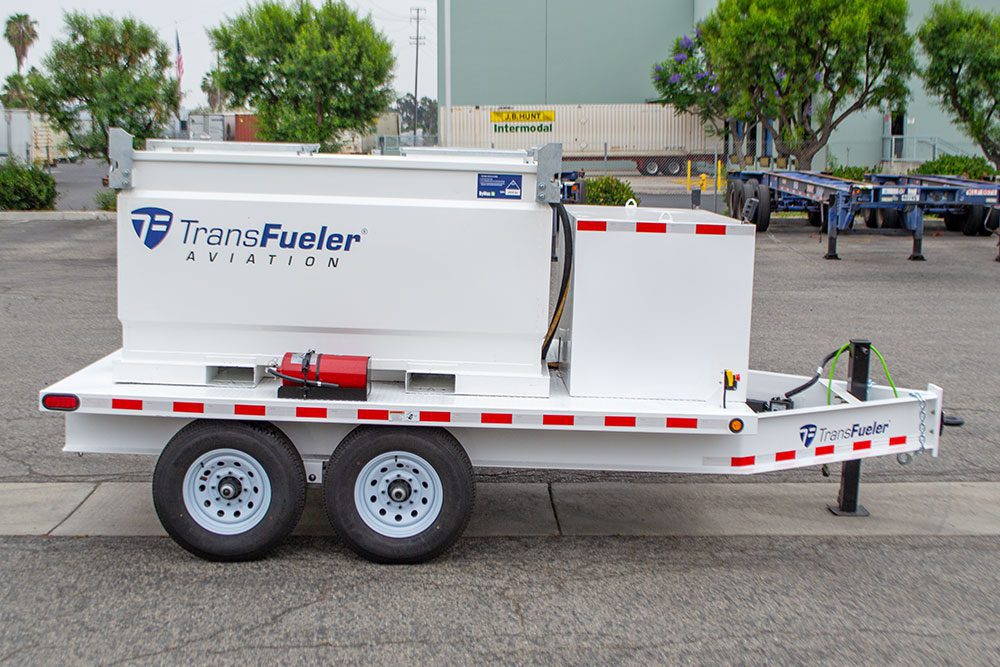

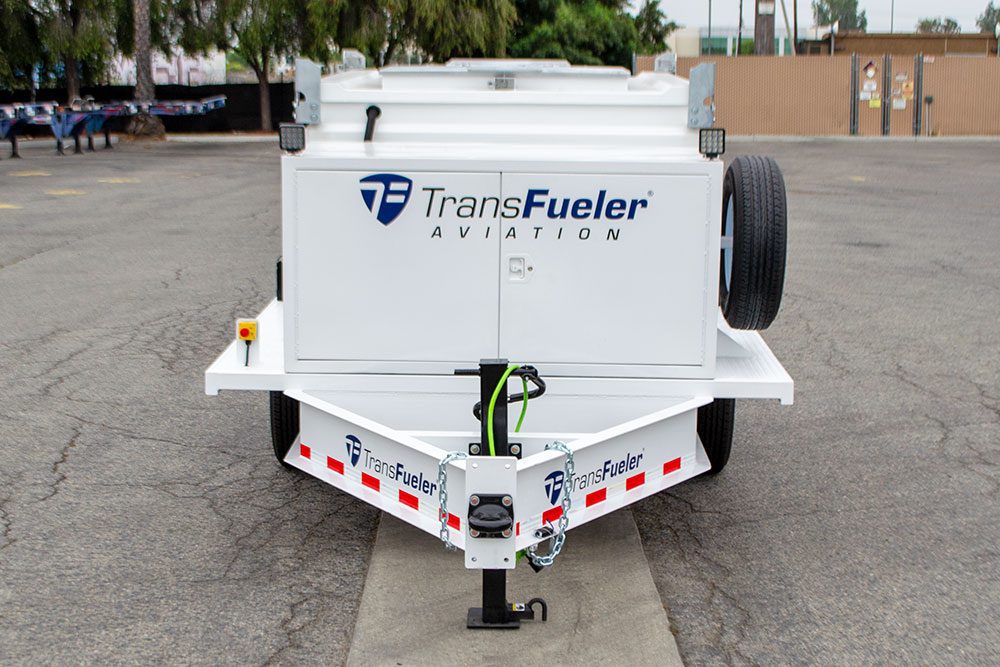

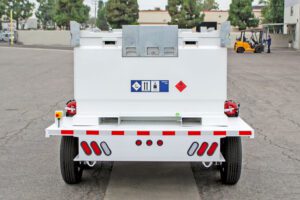

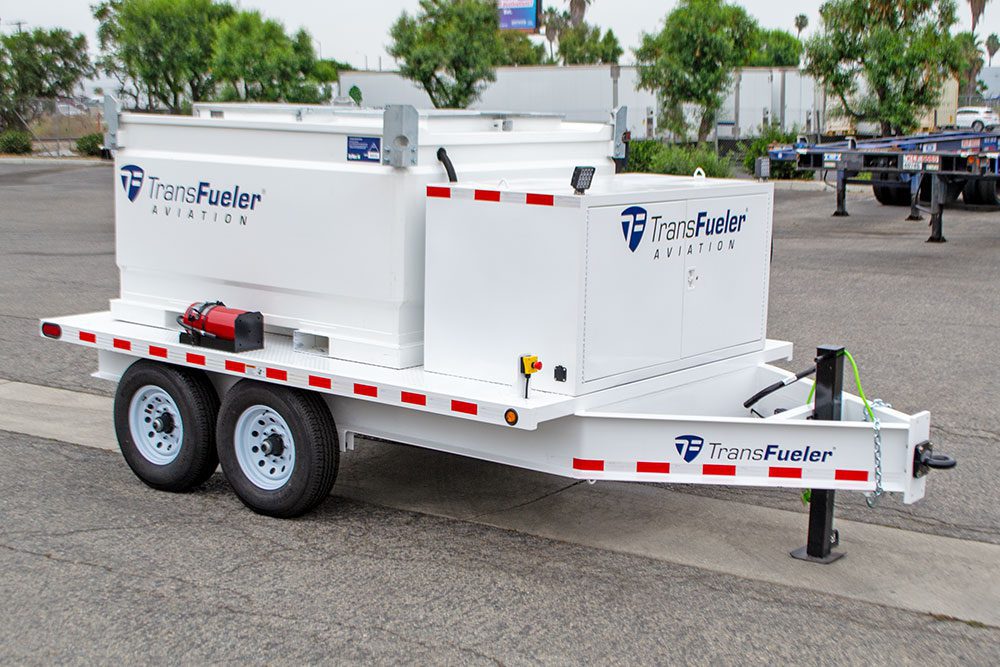

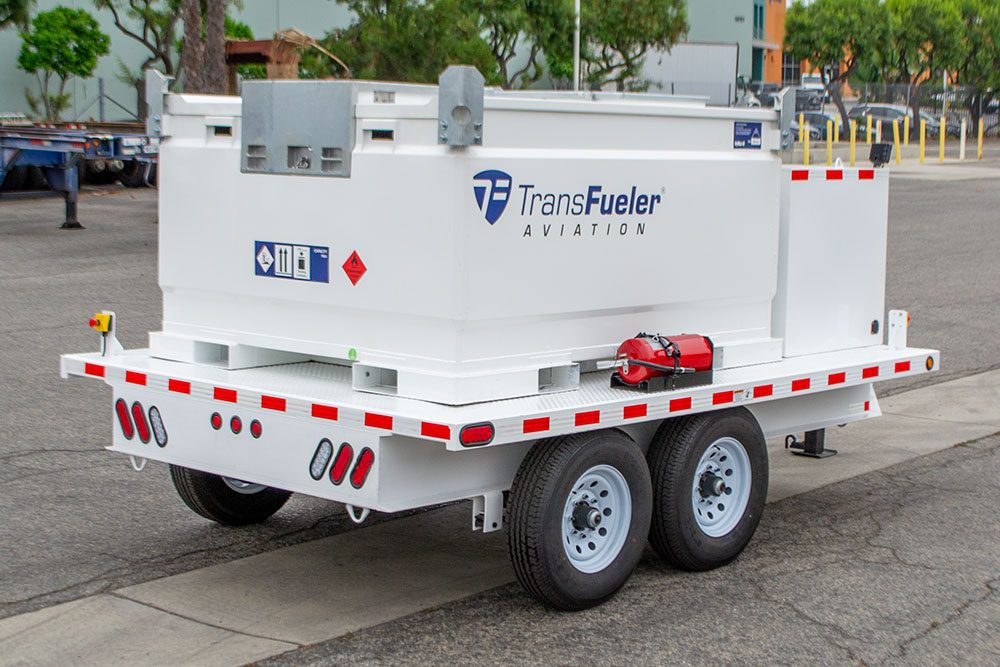

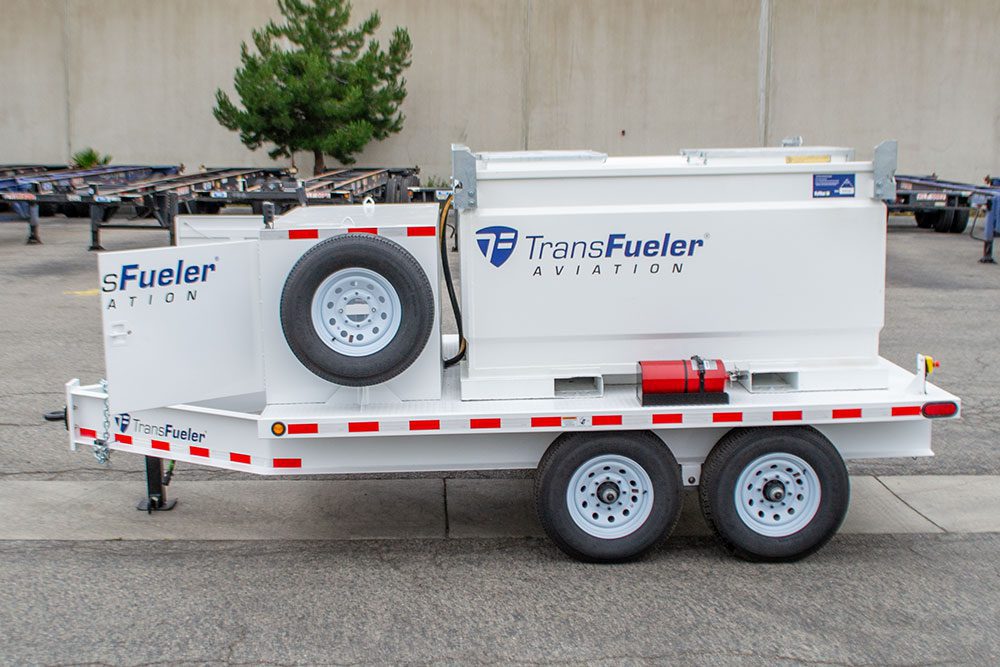

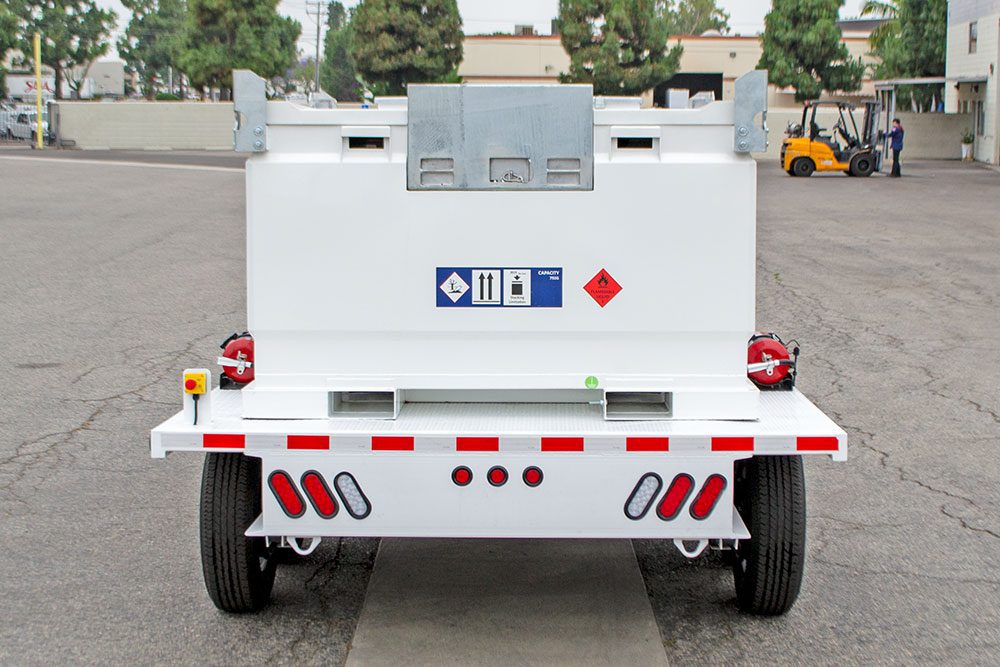

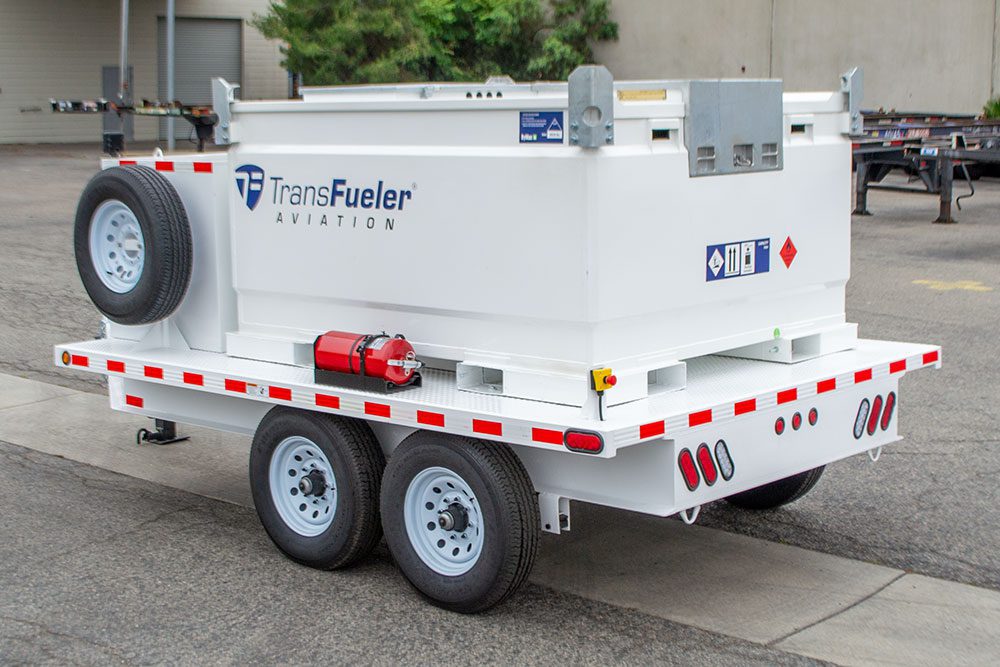

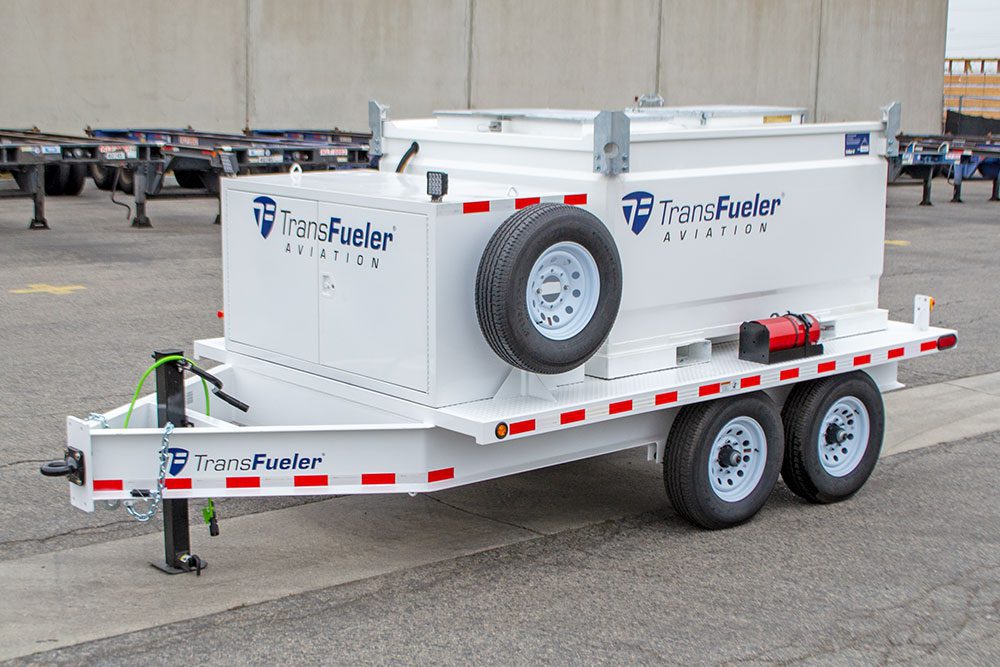

This package features a double wall, 763-gallon tank. It consists of a stainless-steel primary tank with internal baffles and can be equipped with aviation-rated dispensing equipment. The tank is mounted to a 14K GVWR single-axle steel trailer. It is DOT-approved for use with Jet-A and can be towed on public highways when full, with proper licensing.
Our standard aviation equipment packages are all made up of proven aviation-grade names such as Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. We can customize the equipment packages to run off 12-volt DC, 115-volt AC or a gasoline-powered pump.
|
Capacity |
763-gallons |
|
Outer Tank Thickness |
1/8" |
|
Inner Tank Thickness |
3/16" |
|
DOT Status |
Approved for Jet-A & AV Gas |
|
Axles |
2@7,000 lbs ea. |
|
Hubs |
8x6.5" |
|
Tires |
16" Radial |
|
Fuel Baffles |
2 |
|
Trailer Frame |
6" C Channel |
|
GVWR |
14,000 lbs |
|
LxWxH |
193"x84"x75" |
|
Safe Fuel Fill Level |
725-gallons |

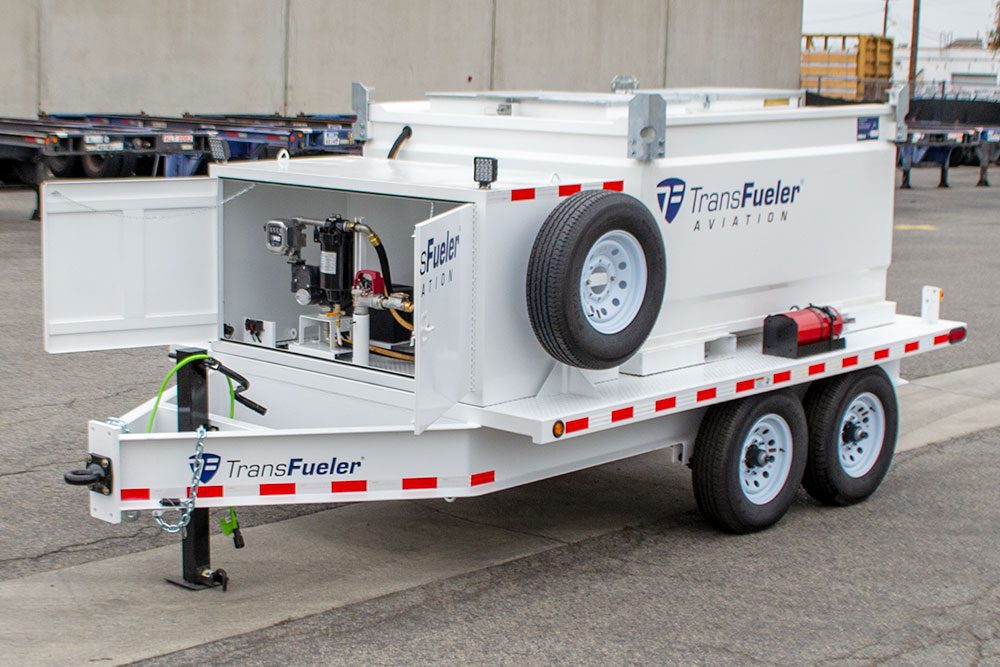

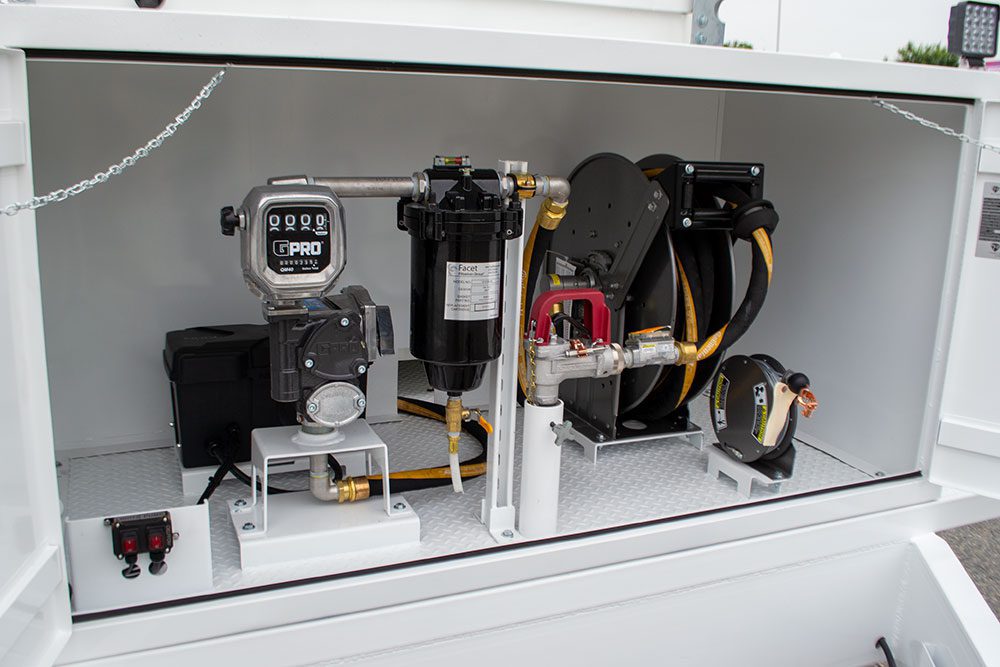

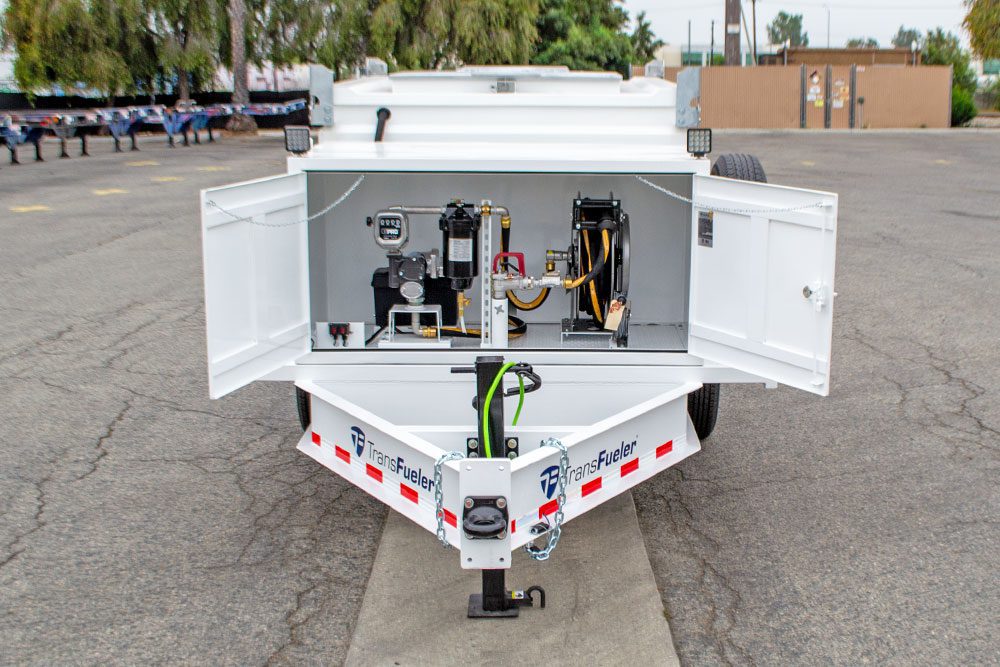

- Can accommodate up to 10M or 40ft retractable hose reel mounted in the bunded equipment compartment.
- Multiple ports that can connect up to three pieces of machinery at one time and allow dispensing simultaneously.
- Galvanized stacking corners double up as a lifting bracket
- (IBC) Intermediate Bulk Containment
- UN 31 A/Y Compliant Design
- Adhering to ADR Regulations
- Lifting While Fuel
- Vibration Tested ASTM D999
- UL 142 Complaint Design
- ULC601-14 & S653
- Pressure Tested
