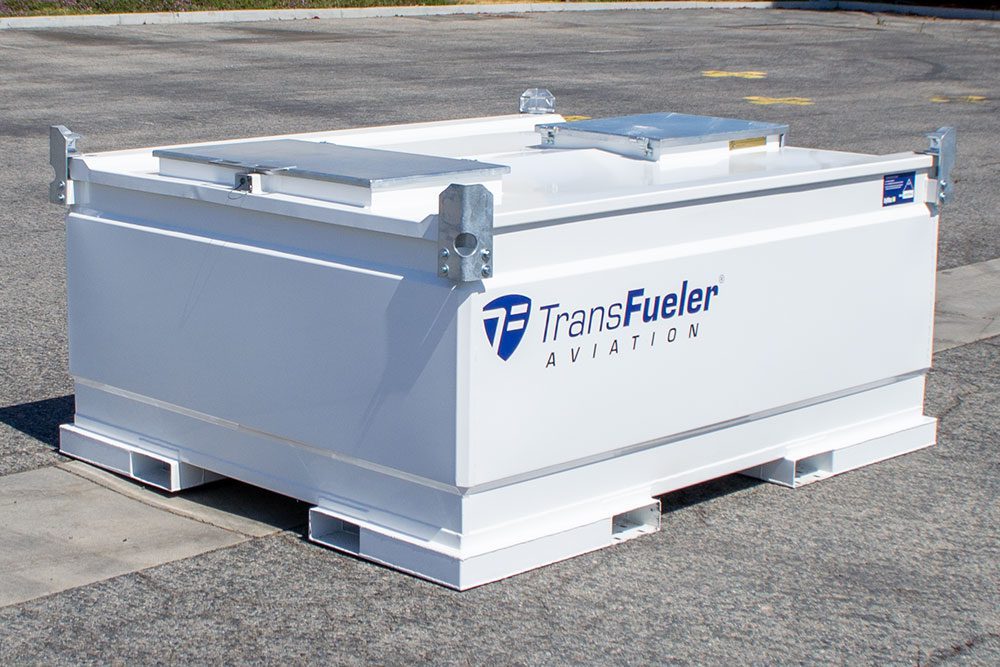

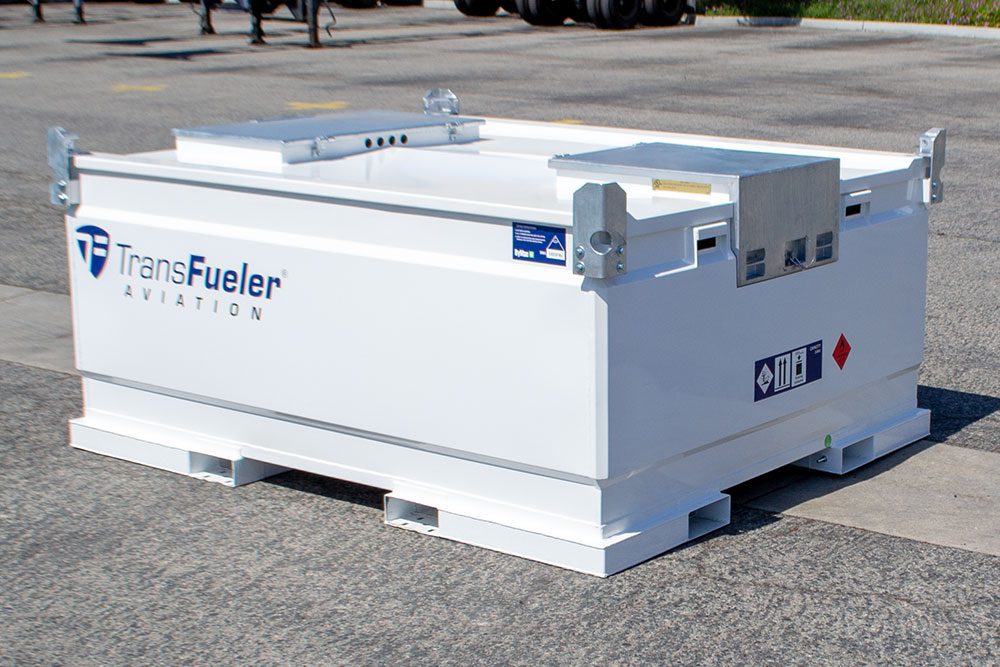

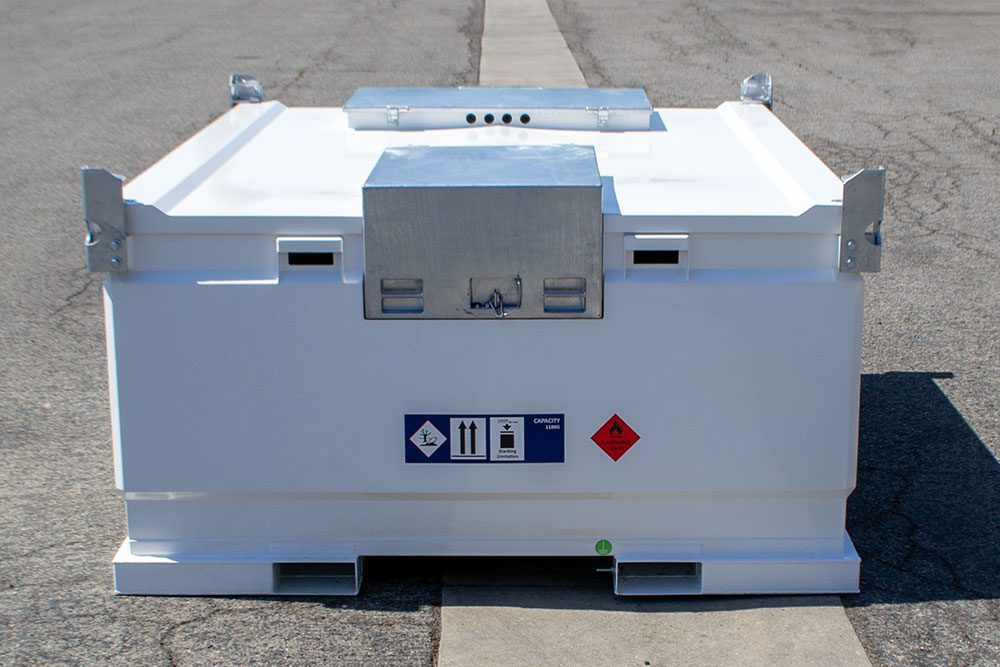

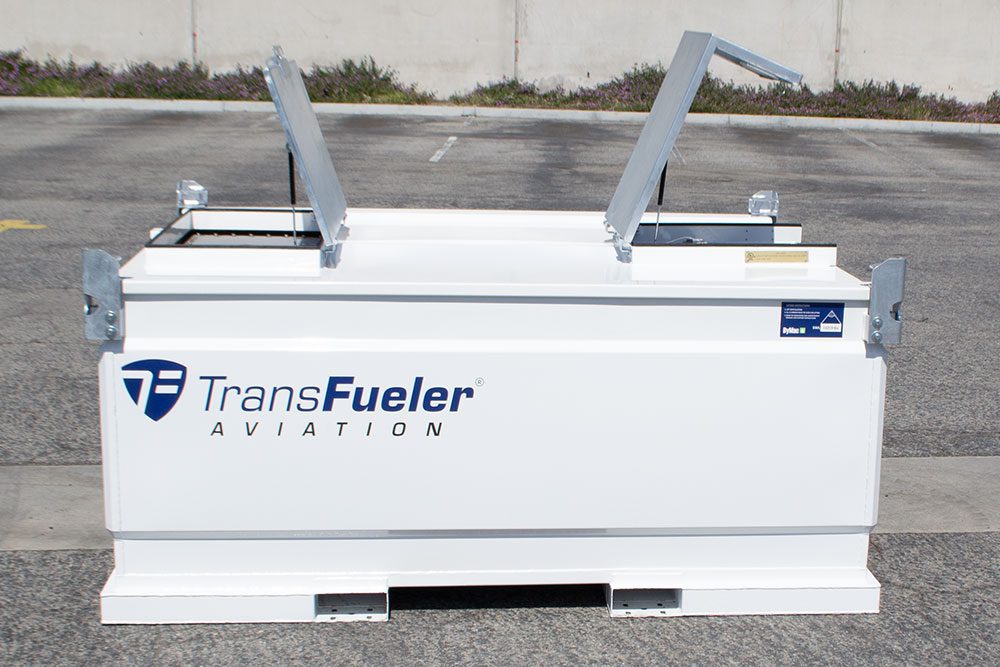

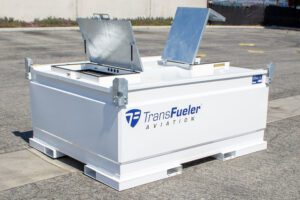

TFTO-1188-UN-A | UN 31 A/Y Aviation Fuel Tank – USA, Europe & Canada compliant
This stackable tank features a 1,189-gallon stainless-steel primary tank with internal baffles. Can be equipped with aviation rated dispensing equipment, including pump, filter, hose, nozzle, and meters, these tanks are able to dispense Jet-A and AV gas quickly and safely. The forklift pockets allow you to easily move the tank when needed and can be mounted on a truck or trailer for legal transport on public roads in USA, Canada, Europe and most countries worldwide.
Our standard aviation equipment packages are all made up of proven aviation grade names such as Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. We can customize the equipment packages to run off 12-volt DC, 115-volt AC, or a gasoline-powered pump.
| Capacity | 1,189-gallons |
| LxWxH | 110"x70"x51" |
| Outer Tank Thickness | 1/8" |
| Inner Tank Thickness | 3/16" |
| Weight (Full) | 3,496 lbs |
| Weight (Empty) | 11,508 lbs |
| Safe Fuel Fill Level | 1,129-gallons |
- Can accommodate up to 10M or 40ft retractable hose reel mounted in the bunded equipment compartment.

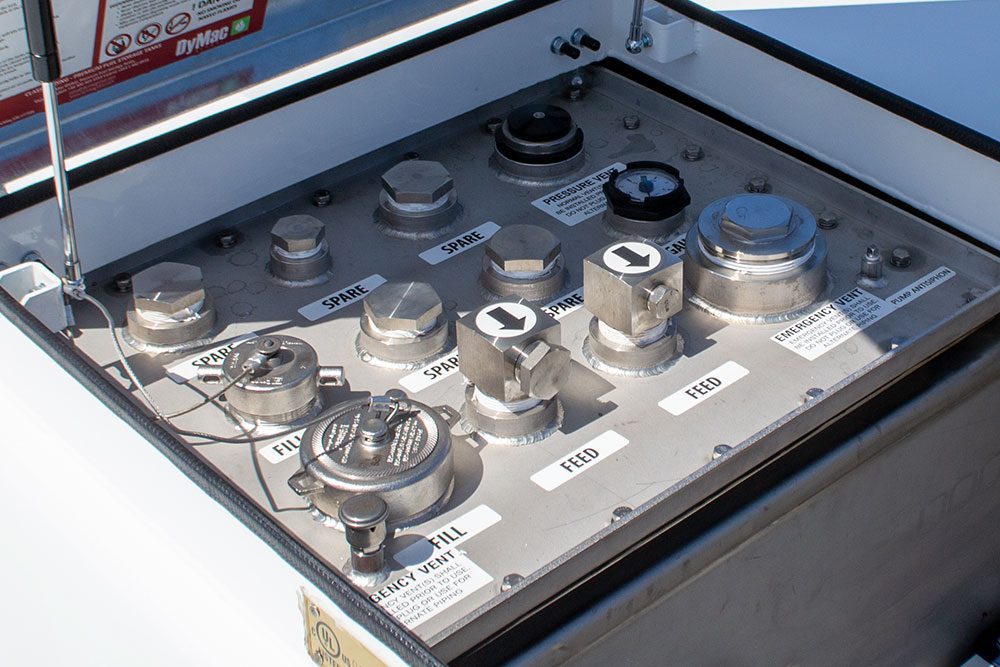

- Multiple ports that can connect up to three pieces of machinery at one time and allow dispensing simultaneously.
- Galvanized stacking corners double up as a lifting bracket
- (IBC) Intermediate Bulk Containment
- UN 31 A/Y Compliant Design
- Adhering to ADR Regulations
- Lifting While Fuel
- Vibration Tested ASTM D999
- UL 142 Complaint Design
- ULC601-14 & S653
- Pressure Tested
