TFC-MINI-A | 95-gallon Mini Fuel Trailer

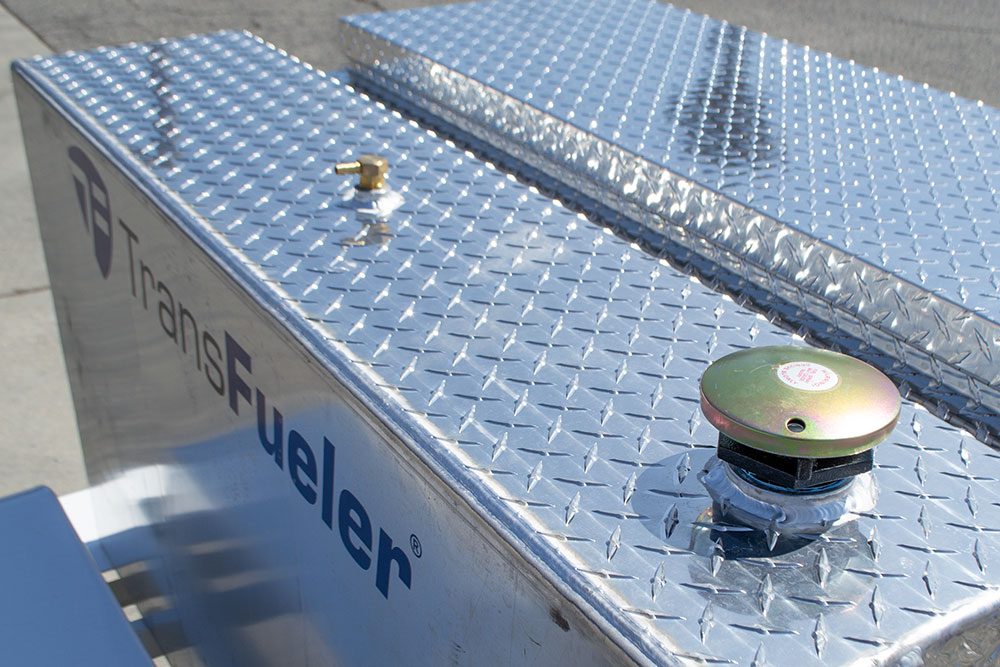

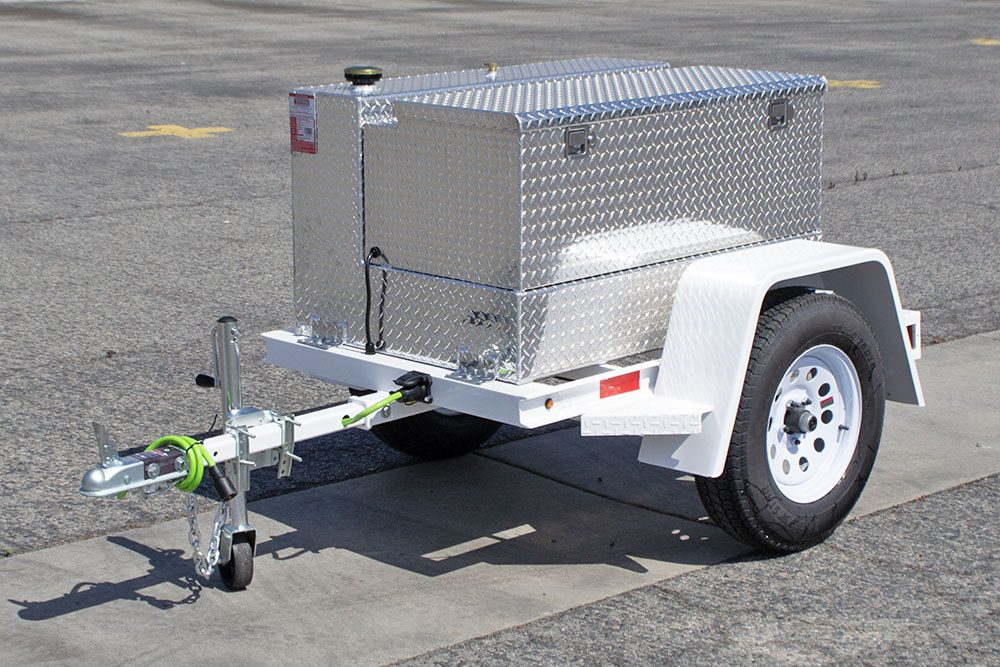

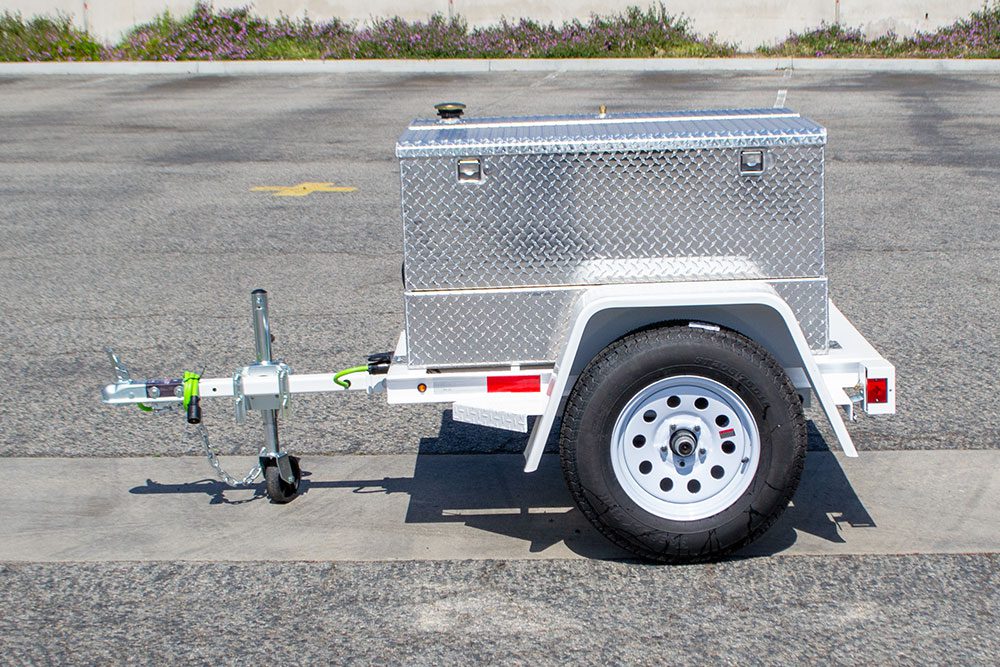

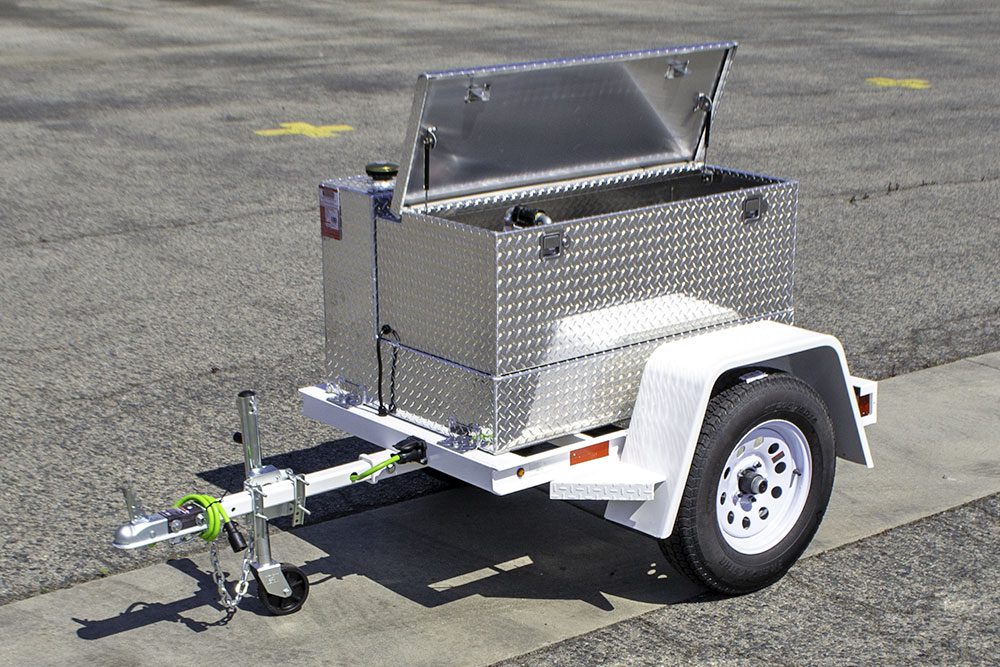

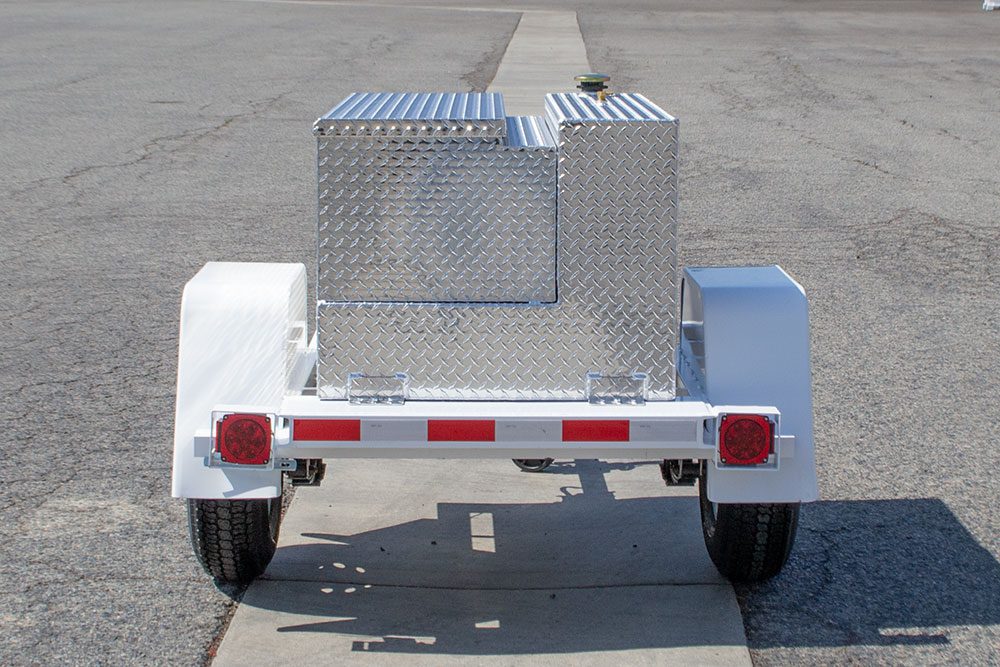

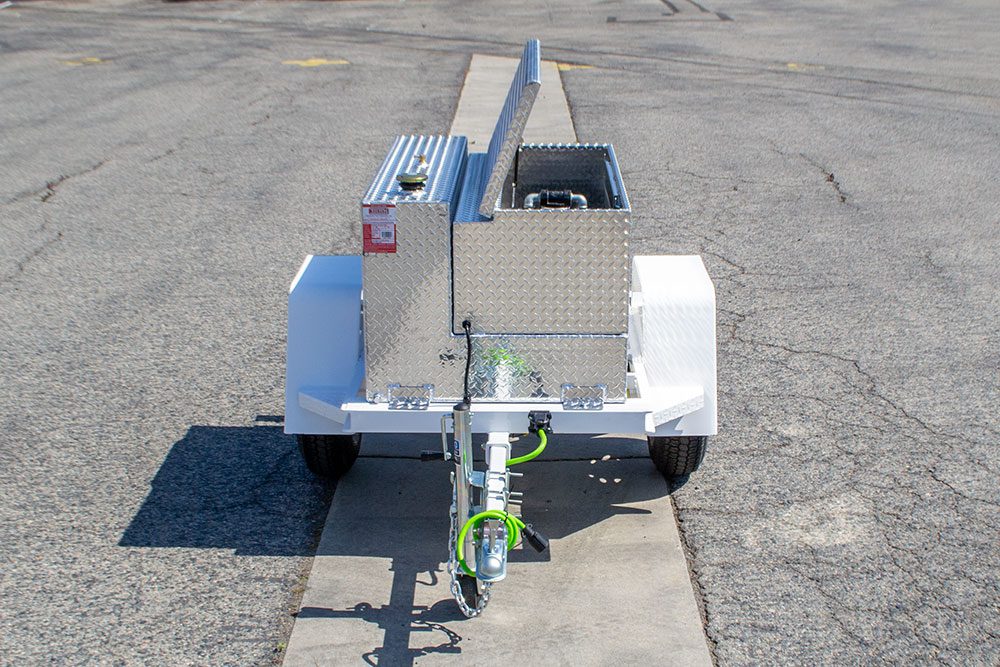

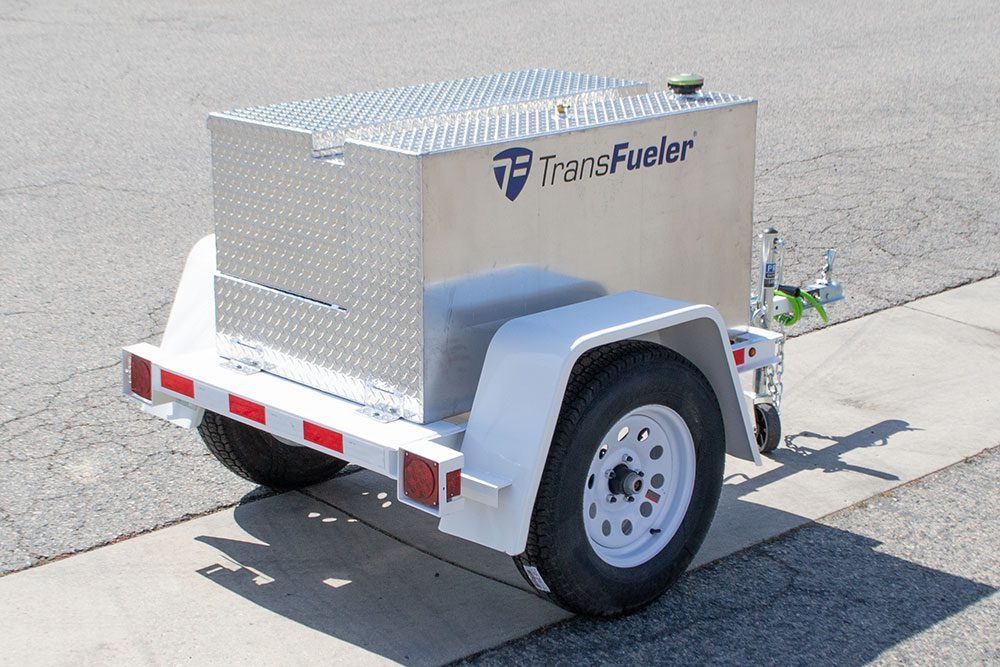

This package includes a diamond plate aluminum tank with a storage box mounted on a 3.5K GVWR single-axle steel trailer. The trailer is DOT-approved for use with Avgas, Jet-A, JP-8, and other aviation fuels. It can be towed on public highways when full, provided proper Hazmat placards and a commercial driver’s license are obtained.

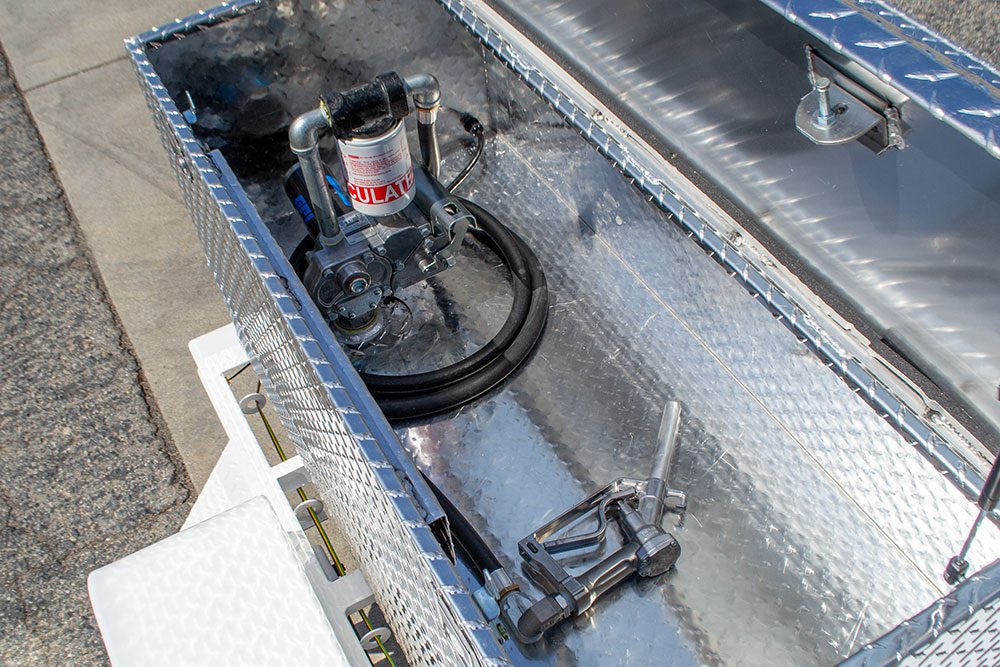

Our standard aviation equipment packages are comprised of 100% aviation-grade components. Featuring the most trusted brands in the aviation industry, such as: Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. Dispensing equipment packages run on 12-volt DC, 115-volt AC, or a diesel/gas powered pump.
| Tank Size | 95-gallons |
| Tank Thickness | 10 Gauge |
| DOT Status | Approved for Avgas, Jet-A, JP-8 |
| Axles | 1 @ 3,500 lbs each |
| Hubs | 5 x 4.5" |
| Tires | 15" Radial |
| Fuel Baffles | 1 |
| Trailer Frame | 3" C Channel |
| GVWR | 3,500 lbs |
| LxWxH | 92.5" x 55" x 46.6" |
| Safe fuel fill level | 85.5-gallons |
- Tank Level gauge, lockable fill cap, roll-over vent
- Stainless steel construction, baffles to prevent sloshing
- Powder coat paint with base coat primer
- Certified hoses, piping, and fittings
- Ball valve installed to isolate tank. Top mounted
- Lockable cabinet enclosure with additional storage space
- Underwing (Single Point) Nozzle
- Differential Pressure Gauge
- Water Detection System
- Deadman system
- Custom Hose lengths available
- Pump options: 12 volt, 115 volt, gas powered and diesel powered
- TCS certifiable and calibratable resale meters
- Refuel/Defuel system
- Fire Extinguishers, Mounted
- Spare Tire with mount
- Work Lights LED - 12 volt or 115 volt
- Solar Panel System 100 watt
- Spill Containment Kit
- Battery Upgrade
- replacement filters
- Digital flow meter
- Aluminum Mag Wheels
