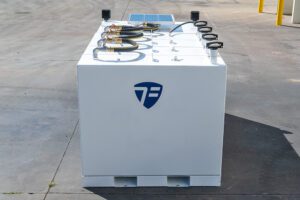

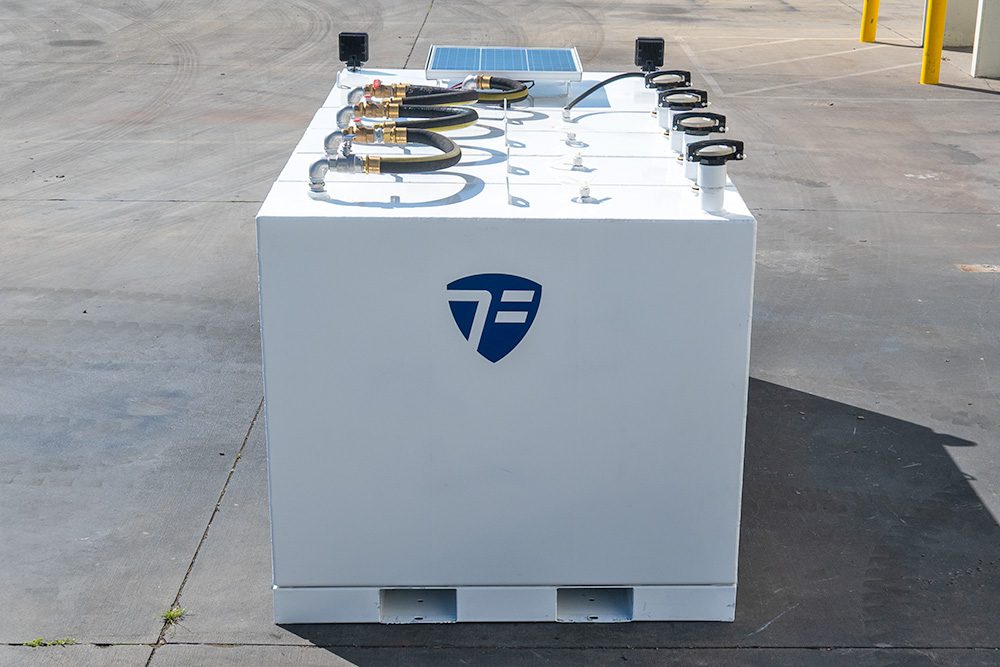

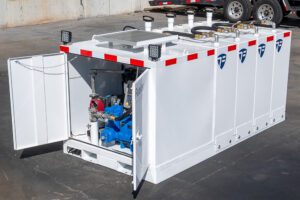

TFS-4M-A | M-Series (No HazMat) Jet-A Fuel Skid

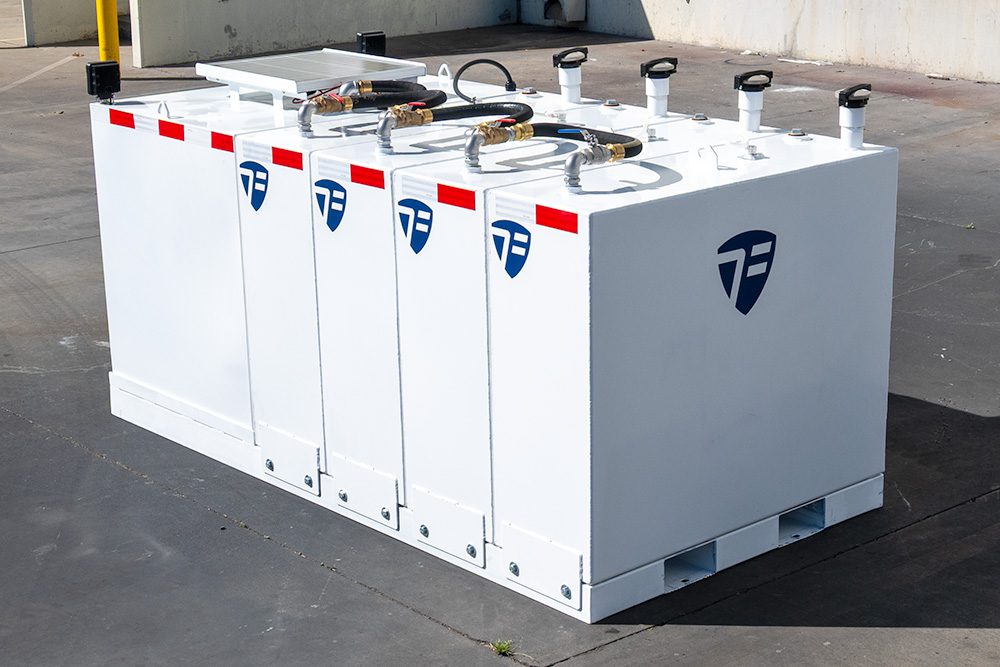

This aviation package features four single-wall 119-gallon stainless steel tanks. All the tanks are mounted on a heavy-duty steel platform and can be easily moved using built-in forklift pockets. The M-Series skids can be securely installed on a truck or trailer and are fully compliant for transporting Jet-A fuel on public roads—no Hazmat certification is required.

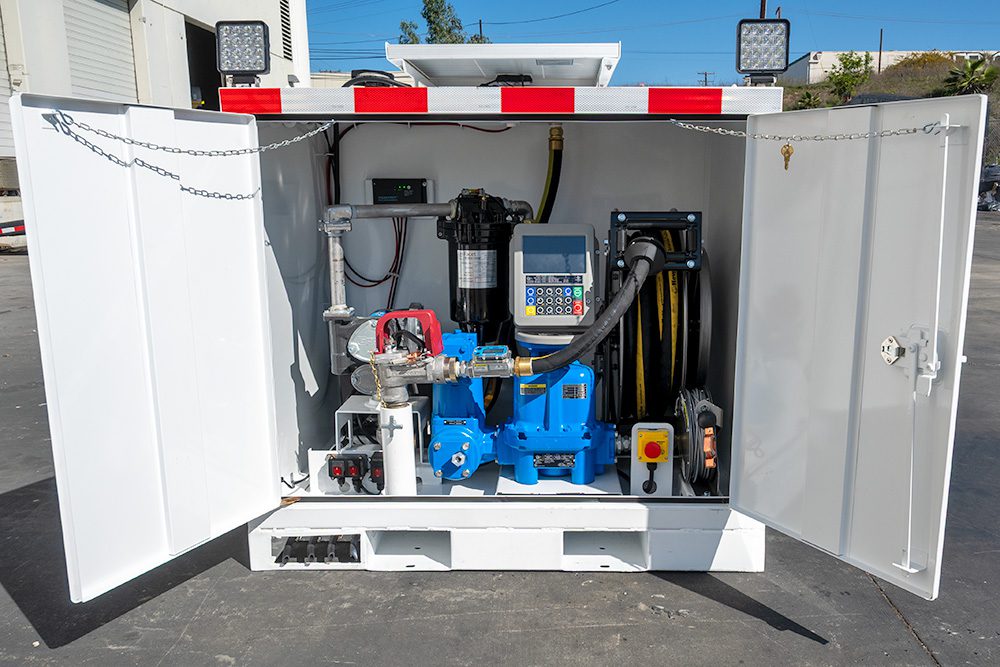

Our standard aviation equipment packages are all made up of proven aviation grade names such as Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. We can customize the equipment packages to run off 12-volt DC, 115-volt AC, or a gasoline-powered pump.
| Tank Size | 119-gallons ea. (4 tanks) |
| Tank Thickness | 12 Gauge |
| DOT Status | Approved for JET-A |
| Fuel Baffles | 1 |
| Weight | 1,800 lbs* |
| LxWxH | 110" x 48" x 41" |
*These weights are estimates, including the skid, tank(s), and a basic aviation equipment package.
-
Tank Level gauge, lockable fill cap, roll-over vent
-
Stainless Steel Construction, baffles to prevent fuel sloshing
-
Powder coat paint with base coat primer
-
Integrated fuel sump with spring close valve
-

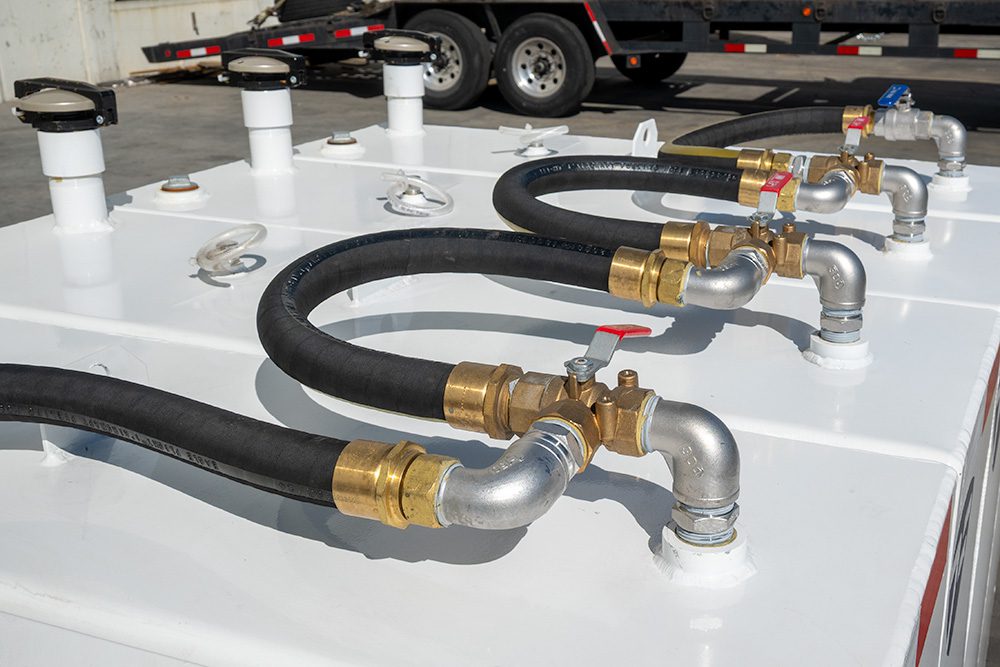

Hoses, piping, and fittings are aviation grade
-
Ball valve installed to isolate the tank. Top mounted
-
TCS certifiable re-sale meters
-
Lockable steel equipment cabinets
-

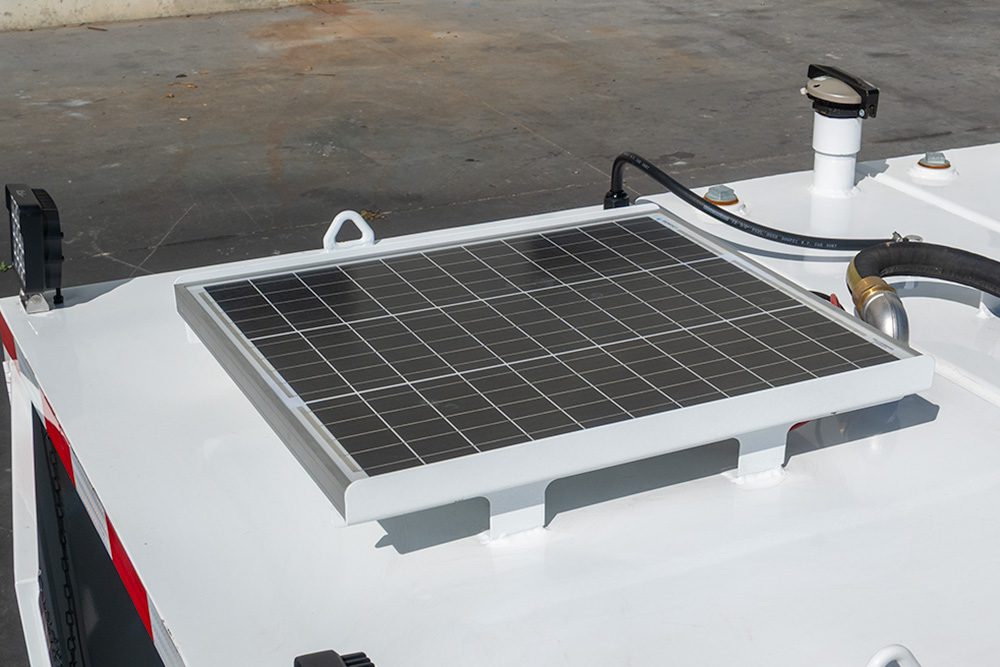

Solar re-charge systems
-
Re-Fuel / De-Fuel system
-
Hose and reel sizes up to 150’ long and 2” diameter
