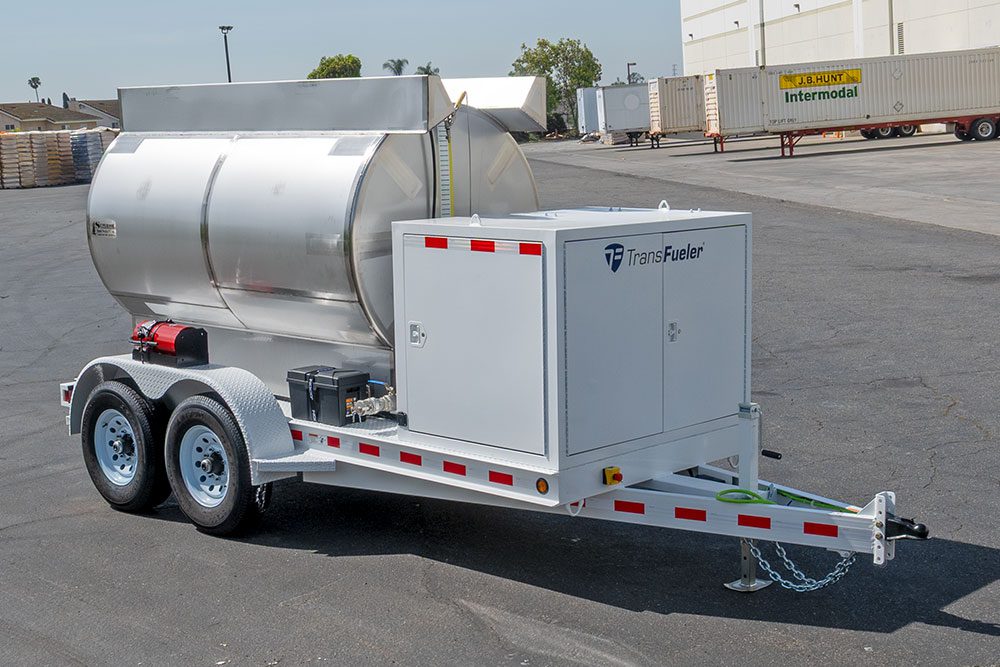

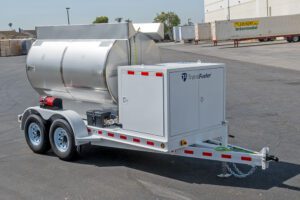

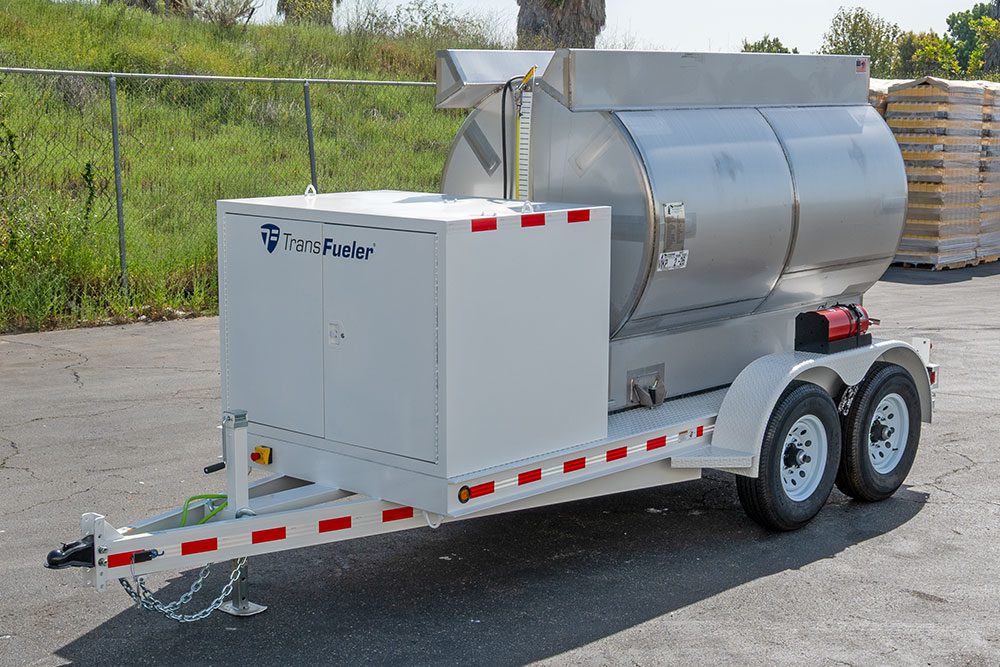

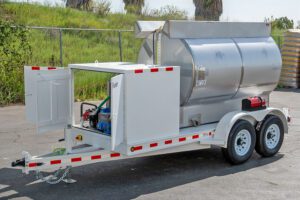

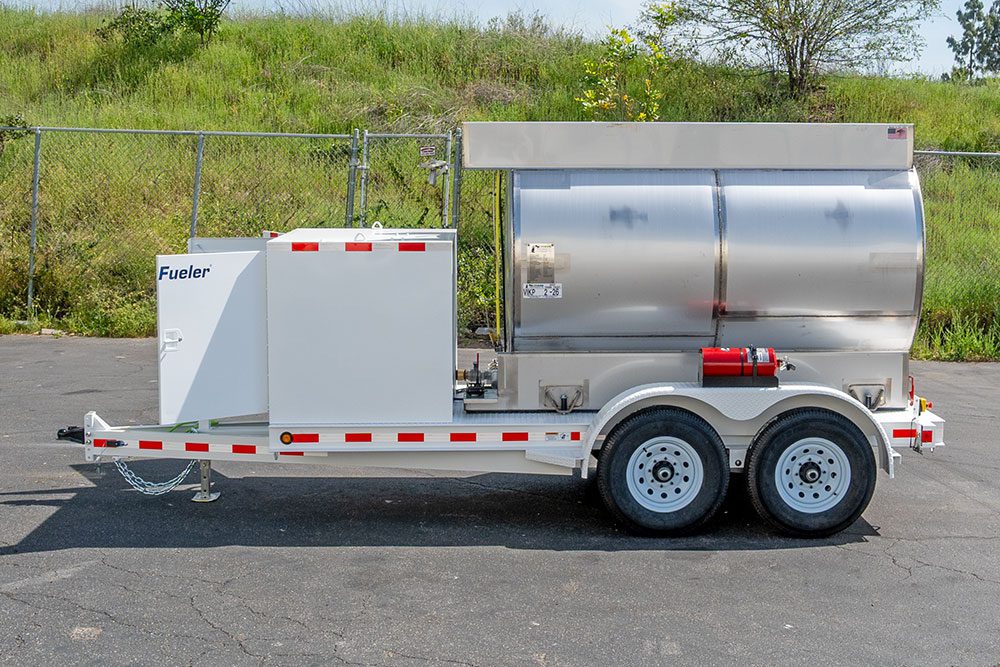

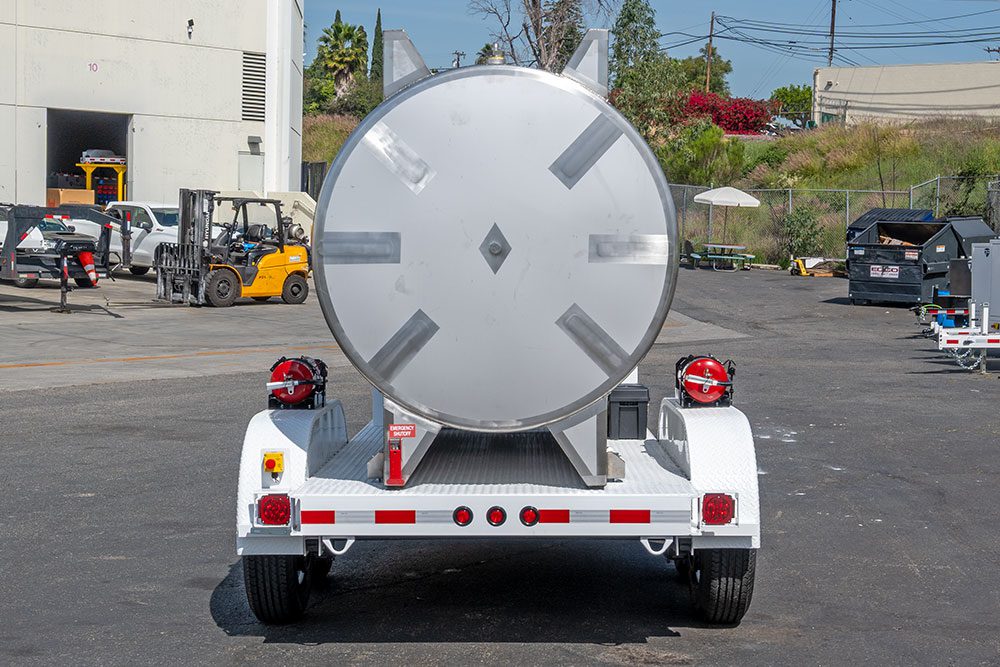

TFC-1000DOT-A | 1,000-gallon Avgas DOT 406 Fuel Trailer
This package includes a 304 Stainless Steel DOT 406 Specification tank mounted on a 14K GVWR double-axle steel trailer. The trailer is DOT-approved for use with Avgas, Jet-A, JP-8, and other aviation fuels. It can be towed on public highways when full, provided proper Hazmat placards and a commercial driver’s license are obtained.

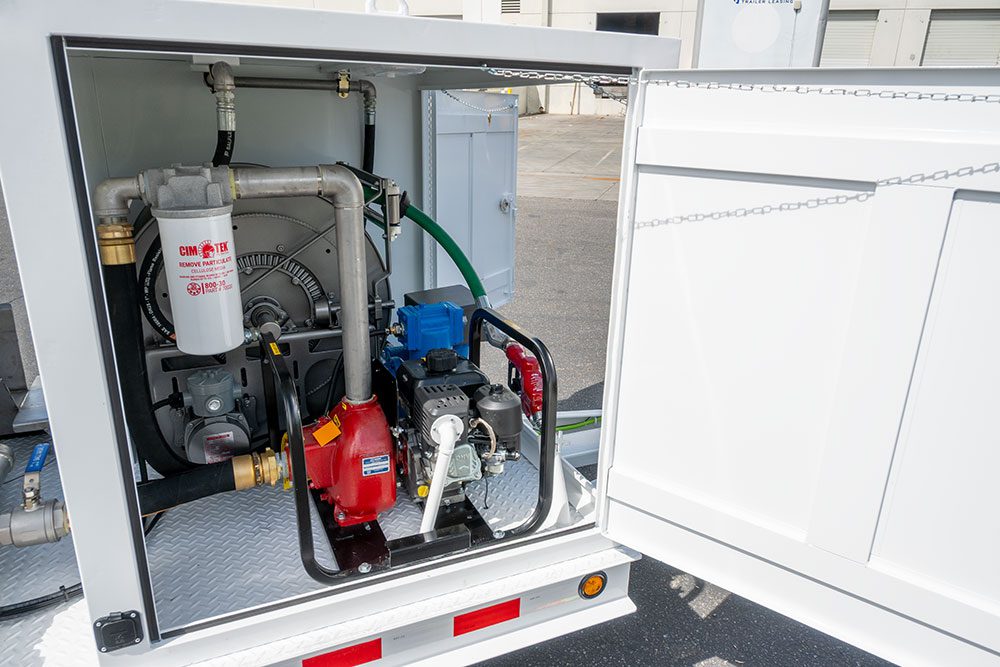

Our standard aviation equipment packages are comprised of 100% aviation-grade components. Featuring the most trusted brands in the aviation industry, such as: Great Plains Industries, Facet, OPW, Continental Hose, and Hannay. Dispensing equipment packages run on 12-volt DC, 115-volt AC, or a diesel/gas powered pump.
| Tank Size | 1,000-gallons |
| Tank Thickness | 10 Gauge |
| DOT Status | Approved for Gas, Diesel, JP-5, Jet-A, Avgas |
| Axles | 2 @ 7,000 lbs each |
| Hubs | 8 x 6.5" |
| Tires | 16" Radial |
| Fuel Baffles | 2 |
| Trailer Frame | 6" C Channel |
| GVWR | 14,000 lbs |
| LxWxH | 206" x 83.5" x 99" |

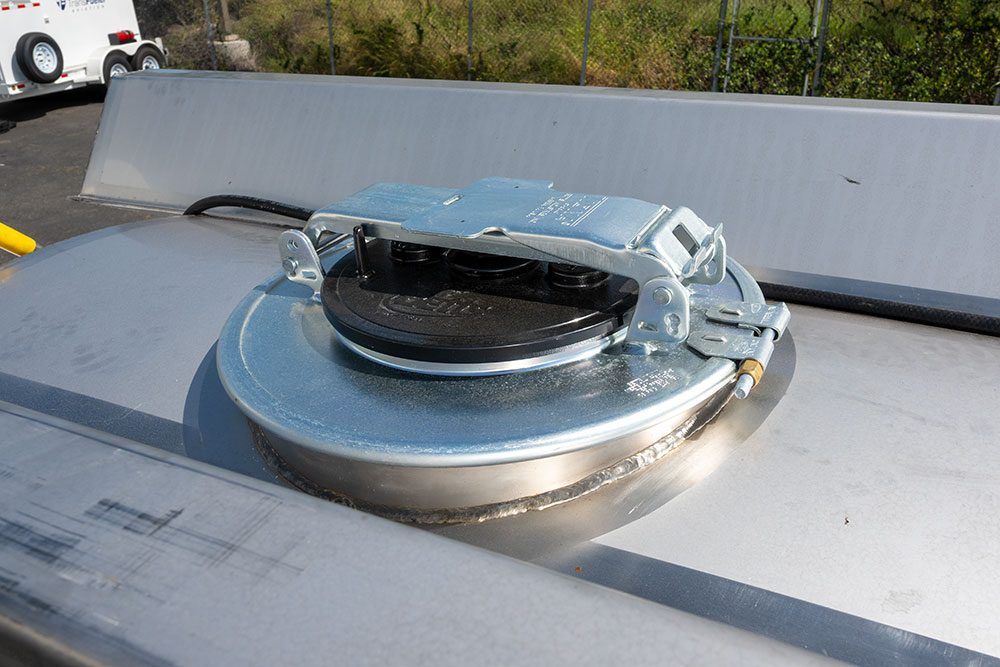

- Tank level gauge, lockable fill cap, 20” Betts hatch with vacuum/pressure vent
- Stainless Steel construction &
baffles to prevent fuel sloshing - Powder coat paint on trailer with base coat primer

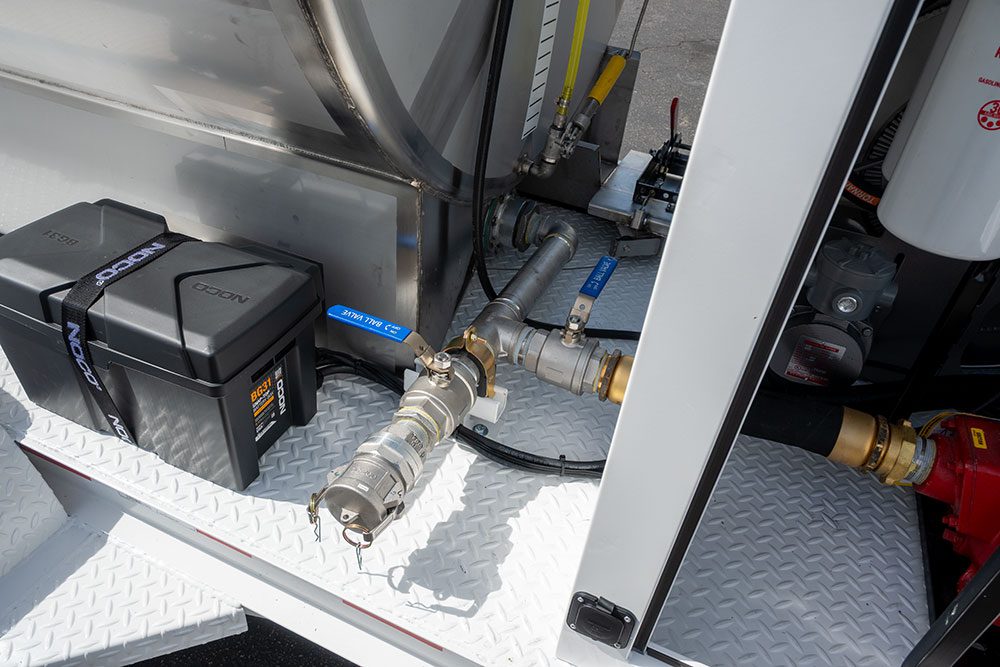

- Integrated fuel sump with spring close valve
- Hoses, piping, and fittings are aviation grade
- Emergency shut off valve
- Two E-stops, 20lbs BC Fire Extinguishers
- TCS certifiable re-sale meters
- Lockable steel equipment cabinets
- Solar re-charge systems
- Bottom-fill system for single point nozzle
- Re-Fuel / De-Fuel system
- Additive metering systems

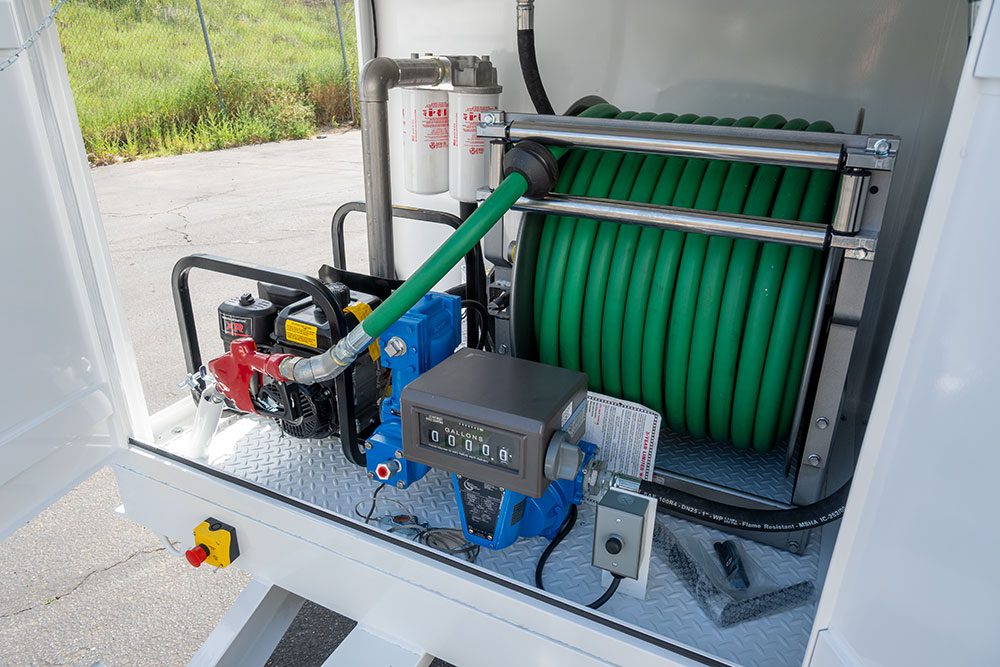

- Hose and reel sizes up to 150' long and 2" diameter

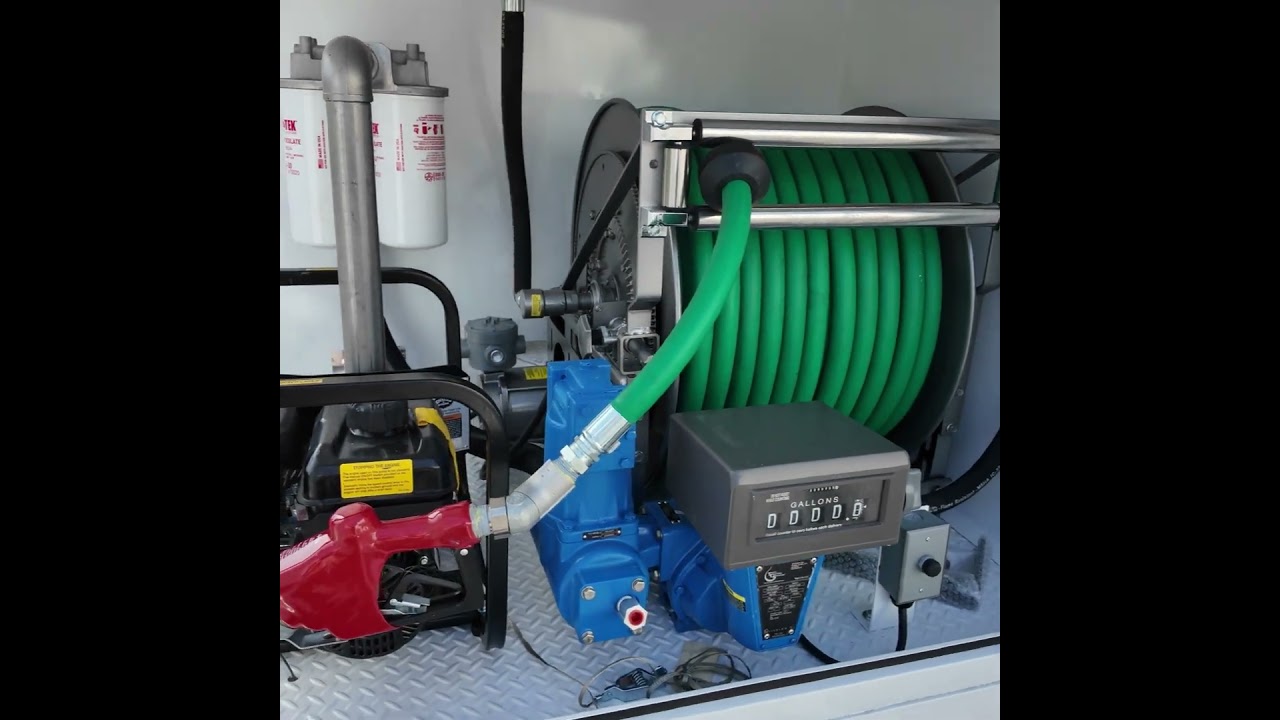

Watch the walkaround video
